DJI Agriculture Drone Patents – Insights and Stats

DJI’s latest agriculture drone is set to transform modern farming with its cutting-edge features and innovative technology. Recently released, this drone includes a large-capacity tank, a modular design for easy maintenance, and advanced spraying systems that can cover extensive areas efficiently. Its AI-powered precision agriculture technology ensures efficient pesticide and fertilizer use, optimizing crop yields and reducing waste. Safety is enhanced with real-time terrain-sensing radar and an omni-directional digital radar system. The technology behind these features is protected by several key patents, showcasing DJI’s engineering excellence. This drone represents a significant advancement in agricultural practices, offering a more sustainable and productive solution for farmers.

Image Credit: Source

What are the key features of DJI Agriculture Drone?

Filling and Preparation:

  • The drone is equipped with a large-capacity tank for pesticides or fertilizers.
  • The tank is filled and the drone is programmed with flight and spraying parameters.

Takeoff and Navigation:

  • The drone autonomously takes off and navigates using GPS and real-time terrain-sensing radar.
  • It can map out the field and create a precise flight path.

Spraying Mechanism:

  • Advanced nozzles and pumps ensure even distribution of the liquid.
  • The drone adjusts the spray volume based on the flight speed and altitude.

AI-Powered Precision:

  • AI algorithms optimize the spray pattern to minimize waste and maximize coverage.
  • Sensors detect crop health and adjust the application rate accordingly.

Real-Time Monitoring:

  • The drone continuously monitors environmental conditions and terrain.
  • Omni-directional digital radar enhances obstacle detection and collision avoidance.

Data Collection and Analysis:

  • The drone collects data on crop conditions, which is transmitted to a central system.
  • Farmers can analyze this data to make informed decisions on crop management.

Autonomous Return and Maintenance:

  • After completing the task, the drone autonomously returns to the base.

The modular design allows for easy cleaning, maintenance, and battery replacement.

Innovation behind the DJI Agriculture Drone

We’ve analyzed key patents related to DJI Agriculture Drone. Read the summary below and discover the ingenious innovations behind this breakthrough technology!

This patent CN214407698U addresses the problem of inaccurate liquid level measurement in agricultural drones caused by mounting errors when the water tank is detached and reattached. By using a buoy assembly that floats inside a detachable tank and incorporating a first measuring piece to sense the float’s position along with a second measuring piece to detect a fixed calibration piece at the tank’s bottom, the system ensures zero-error measurement. This calibration guarantees precise liquid level readings, leading to efficient and accurate spraying operations.

The use of magnetic or optical sensors enhances accuracy, reducing waste and ensuring effective application of pesticides or irrigation. Additionally, the detachable tank design facilitates easy refilling and maintenance, improving the overall reliability and performance of agricultural drones in farming operations.

This patent US20240124169A1 introduces a takeoff and landing platform for multiple UAVs, designed to enhance the efficiency and reduce costs associated with collaborative drone operations. The platform includes a base, a bracket with a vertical guide rail, and an accommodating portion that allows multiple UAVs to be stacked vertically, each equipped with a structure to facilitate stacking. In agricultural drone applications, this system significantly improves operational efficiency by automating takeoff, landing, and maintenance processes, thereby reducing the need for manual intervention and large operational sites. It increases efficiency by minimizing space requirements and downtime, reduces costs by streamlining operations, and enhances coordination for tasks like synchronized spraying or large-scale monitoring.

Additionally, it supports scalability by allowing seamless integration of additional drones without increasing manpower or site demands. Overall, this patent makes agricultural drone operations more streamlined, cost-effective, and scalable, improving productivity in farming operations.

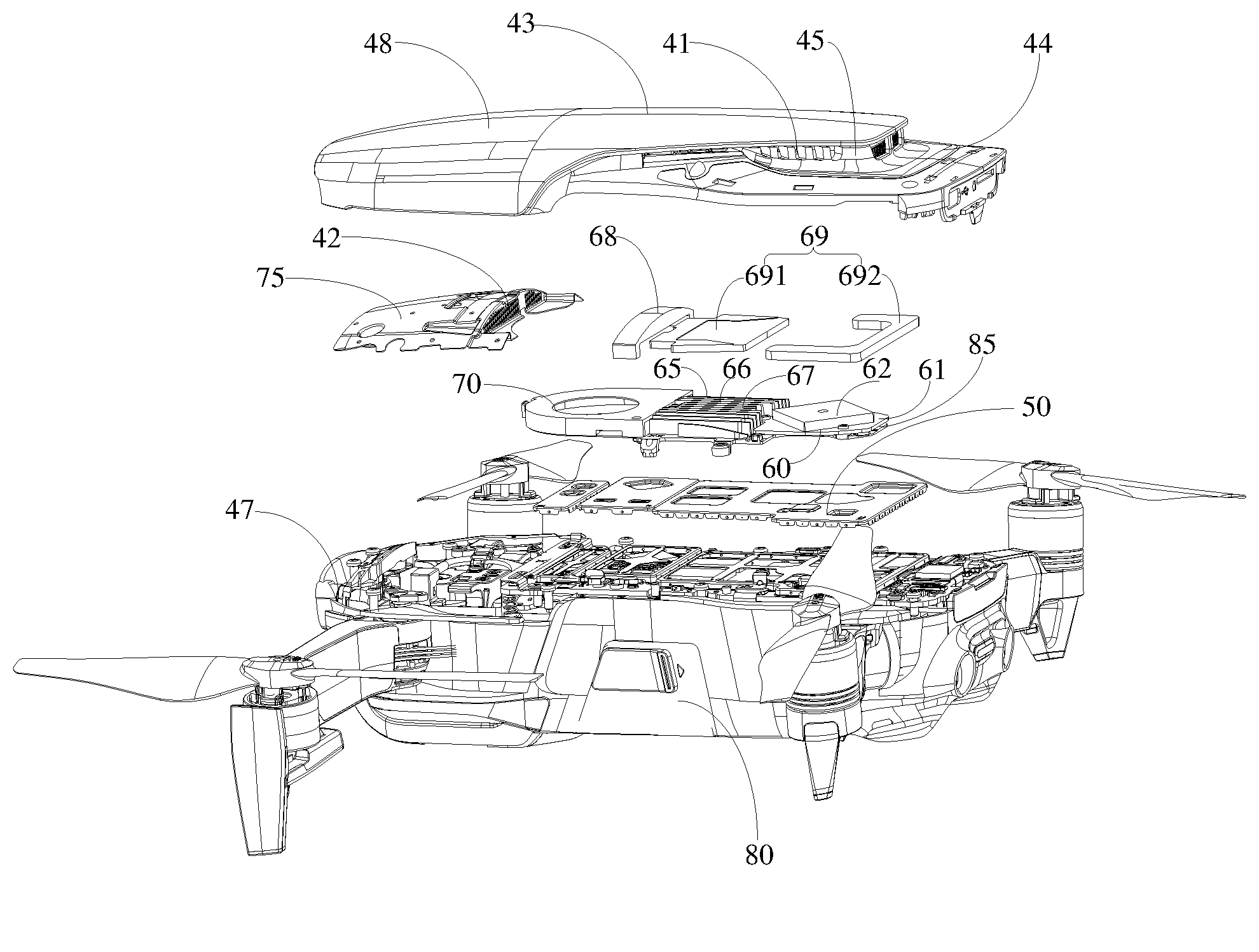

This patent US20240083571A1 addresses the issue of heat buildup in unmanned aerial vehicles (UAVs), which can lead to malfunctions if not properly managed. The patent describes a heat dissipation structure that includes a housing with two air vents. The first air vent guides airflow into the housing, leveraging the airflow generated by the UAV’s propeller during rotation. The positioning of this vent ensures it overlaps with the propeller’s airflow, maximizing cooling efficiency. The second air vent allows the heated air to exit the housing.

By improving the airflow through the UAV’s body, this system effectively dissipates heat generated by internal electronic components, enhancing the UAV’s performance and safety. This solution solves the problem of overheating in UAVs, ensuring they operate reliably even with increased power consumption and complex electronics.

This patent US20220004201A1 enhances the obstacle-avoidance capabilities of agricultural UAVs, particularly in complex terrains like hills, slopes, and terraces. It introduces a method where the UAV measures the distance to objects in its flight path using sensors and automatically adjusts its flying altitude based on this distance. The UAV is equipped with a flight controller that includes processors to manage these functions, communicating with the power system to make necessary altitude adjustments. This solution ensures that agricultural UAVs can navigate uneven terrains smoothly, avoiding obstacles effectively and operating efficiently in varied agricultural environments.

In conclusion, while competitors like Parrot, AeroVironment, and PrecisionHawk are also developing advanced agricultural drones, DJI stands out with its innovative design and patented technologies. The DJI Agriculture Drone’s unique features, such as AI-powered precision agriculture technology, advanced spraying systems, and real-time terrain-sensing radar, set it apart from other products in the market. These innovations not only ensure efficient and accurate spraying but also enhance the overall reliability and performance of the drone. By integrating cutting-edge technology and thoughtful design, DJI’s agricultural drones have the potential to transform modern farming practices, making them more sustainable, productive, and efficient. This transformative potential underscores DJI’s leadership in the agricultural drone industry, promising a future where farming is smarter and more environmentally friendly.
